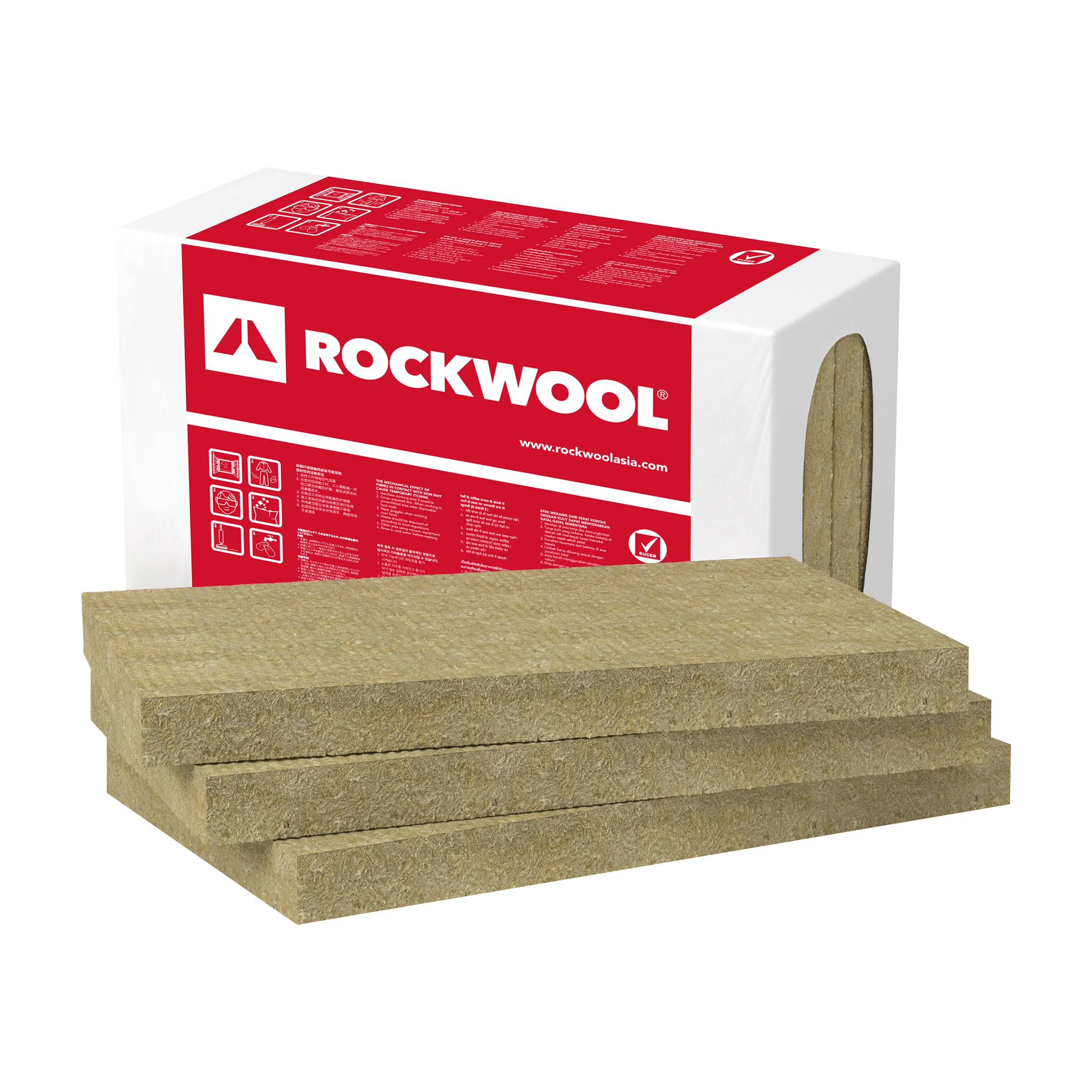

Rockwool® Rainscreen
ROCKWOOL Rainscreen is a specially developed stonewool insulation range for ventilated façades (double-skin facades or rainscreens) to help temperature regulation in building, protect against water intrusion and reduce external noise.
- Contributes thermal comfort and building energy efficiency
- Moisture repellent whilst allowing the structure to maintain breathability and dryness.
- Compatible with range of cladding attachment systems – easily fitted around brackets and other components
- When panels are tightly butted the adjacent slabs effectively ‘knit’ together providing a continuous insulating layer
- Non-combustible, does not develop toxic smoke and has a 1000oC melting point
- FBS-1 stone wool insulation – safe to use.
Specifications
| Product Type | Density kg/m3 |
Material R-value m²K/W | Nominal thickness mm |
Width mm | Length mm | Pieces per pack | Coverage per pack m² | Product code |
|
ROCKWOOL Rainscreen SL950 |
80 |
0.70 |
25 | 600 | 1200 | 12 | 8.64 |
4010536* |
|
80 |
0.85 |
30 | 600 | 1200 | 10 | 7.20 |
4010537 |
|
|
80 |
1.10 |
38 | 600 | 1200 | 8 | 4.32 | 4010538 | |
| 80 | 1.45 | 50 | 600 | 1200 | 6 | 4.32 |
4010539* |
|
| 80 | 2.15 | 75 | 600 | 1200 | 4 | 2.88 |
4010540 |
|
|
80 |
2.55 |
90 | 600 | 1200 | 3 | 2.16 |
4010541 |
|
| 80 | 2.85 | 100 | 600 | 1200 | 3 | 2.16 |
4010542 |
|
| 80 | 3.55 | 125 | 600 | 1200 | 2 | 1.44 |
4010543 |
|
|
ROCKWOOL Rainscreen SL960
|
100 | 0.75 | 25 | 600 | 1200 | 12 | 8.64 |
4010544 |
|
100 |
0.90 |
30 | 600 | 1200 | 10 | 7.20 |
4010545 |
|
| 100 | 1.10 | 38 | 600 | 1200 | 8 | 4.32 |
4010546 |
|
|
100 |
1.45 |
50 | 600 | 1200 | 6 | 4.32 |
4010547 |
|
| 100 | 2.20 | 75 | 600 | 1200 | 4 | 2.88 |
4010548 |
|
|
100 |
2.65 |
90 | 600 | 1200 | 3 | 2.16 |
4010549 |
|
|
100 |
2.95 |
100 | 600 | 1200 | 3 | 2.16 |
4010550 |
|
|
80 |
3.70 |
125 |
600 | 1200 | 2 | 1.44 |
4010551 |
* Stocked Product
Resources / Downloads
Product Benefits
Thermal Performance
Fire Performance
Acoustic Performance
Energy Efficiency
Condensation Management
Where products can be used:
Applications
External Walls
Facade
Building Types
Houses
Townhouses
Apartments
Aged Care
Hospitals
Schools & Universities
Offices
Retail & Hospitality
Entertainment
